12 Volt DC Motor with Gearbox – Factory Price | Pincheng Motor

Short Description:

Factory Price 12 volt dc motor with gearbox adopting industrial grade raw material, rather than ordinary material, the speed reduction gear motor could be used for a long period on bad conditions like high temperature and low temperature.

PINCHENG is one of the leading micro motor manufacturers, factories & suppliers in China, accepting OEM, ODM, SKD orders.


  • Output wattage: 0.01-1.5W
  • Rated voltage: 12 V
  • No-load speed: 3 RPM
  • Product diameter: 40 mm
  • Shaft diameter: 4 mm
  • Product Detail

    Video

    Product Tags

    PC-JS30(Plastic)

    12 Volt DC Motor With Gearbox

    DC motor with gearbox with professional motor, the speed reduction gear motor has large range of voltage adjustment, low heat, low noise, small size, high torque, reversible, and easy to install With mini size whose diameter is 40 mm, the speed reduction gear motor could be use for small display stand, such as mobile phone display; handicraft display; jewelry display; and gift display. Pincheng Motor can offer OEM&ODM service

    Experienced manufacturers

    Professional research

    Long Lifetime

    https://www.pinmotor.net/factory-price-12-volt-dc-motor-with-gearbox-js30-pincheng-motor-product/

    Factory price 12 volt dc motor with gearbox JS30

    Write your message here and send it to us

    Product Information

    Model Voltage No Load At Maximum Efficiency Stall
    Operating Tange Nominal Speed (r/min) Current Speed (r/min) Current (A) Torque Output Torque Current
    PC-JS30RCF-06950 2.0-4.0 3.0V 1.7 0.01 1.1 0.02 72.7 741.8 0.01 204.2 2083 0.033
    PC-JS30RCF-06930 9.0-13.0 12.0V 6.5 0.045 4.2 0.08 268.3 268.3 0.12 748 7630 0.144

    * Other parameters: according to customer demand for design

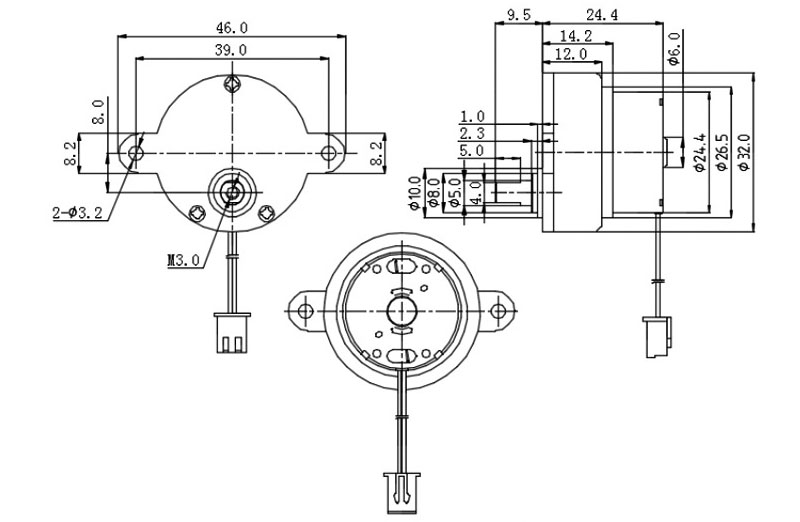

    Specification Engineering Drawing

    https://www.pinmotor.net/factory-price-12-volt-dc-motor-with-gearbox-js30-pincheng-motor-product/

    Application

    - Lighting: lawn light/colorful rotating lights/crystal magic ball lights;

    - Adult Suppliers/Showcase/Toys/Actuators

    Tea table

    Tea table

    Vacuum packing machine

    Vacuum packing machine

    Water dispenser

    Water dispenser

    Foam hand sanitizer

    Foam hand sanitizer

    Electric decanter

    Electric decanter

    dishwasher

    dishwasher

    Images for micro gear pump---100% live-action shooting, Quality Guarantee

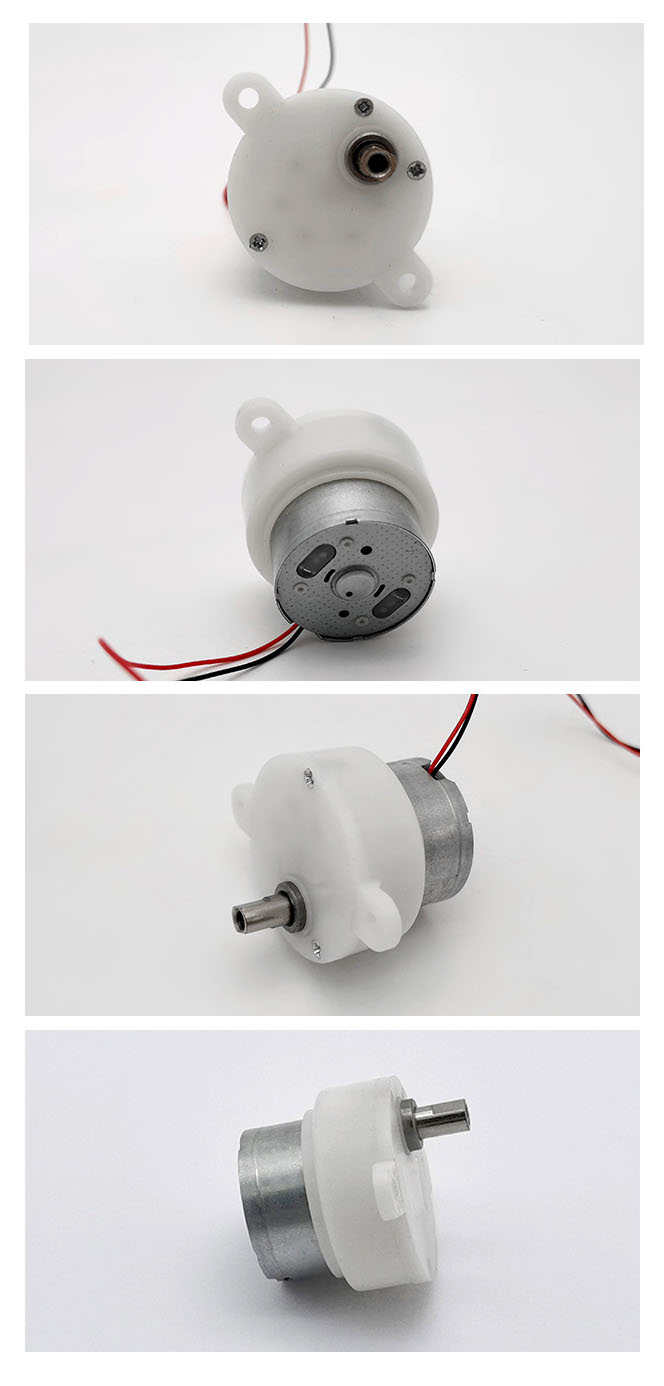

    Product Photograph Real Shot

    china dc gear motor 12v

    We supply more than just product, we engineer solutions optimised to suit your application requirements.
